Ruko

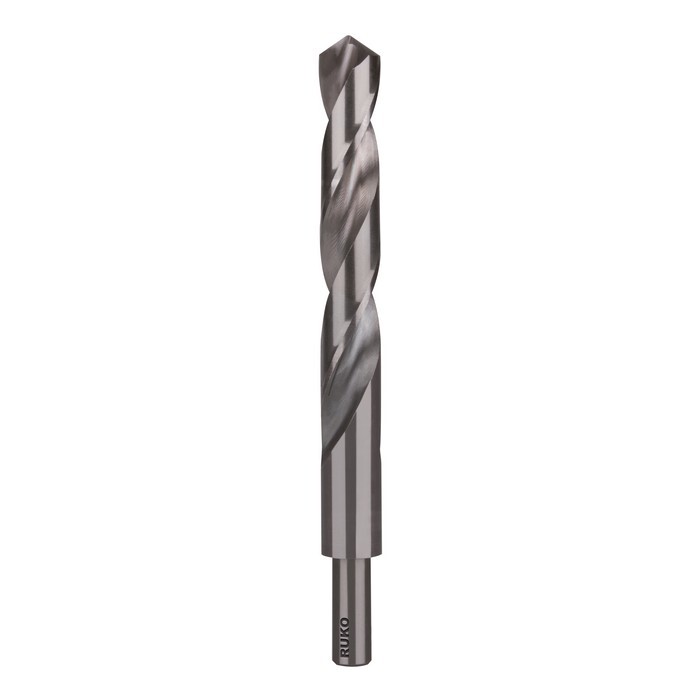

Twist drill DIN 338 type N

14.5 mm, HSS-G stepped shank Ruko 2004145
HSS
Item-no.: 1011097Supplier number: 2004145EAN: 4007140260062

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
High-performance ground standard twist drill made from heavy-duty high speed steel. The fully ground twist drill has a precise concentricity. Thanks to the split point, this drill has good centring properties and requires little pressure. Ideally suitable for drilling larger drilling diameters on all commonly-used drilling machines with a clamping chuck up to 13,0 mm.
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Attributes
Coat
Uncoated
Core
normal
Cutting direction
right-hand cutting
DIN
338
Diameter
14,5 mm
Drilling depth
5 x diameter
Groove profile
normal
Length (battery)
169 mm
Material
HSS
Series
RUKO042200
Shaft
Stepped shaft
Spiral angle
25° - 30°
Spiral length
139 mm
Tip angle
118°
Tip bevel
Form C: Cross grinding
Tolerance
h8
Type
N
