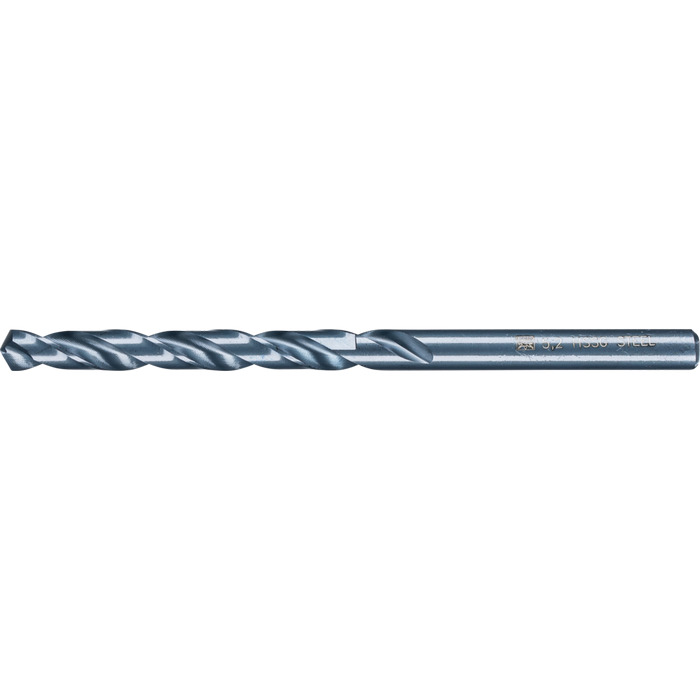

Twist drill
SPB DIN 338 HSSG N 5.2 Steel PferdItem-no.: 1416448Supplier number: 25203528customs tariff number: 82075060EAN: 4007220167045
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Item available in 127 variants:
Price and stock visible after login
Description
Drilling tools with cross grinding for industrial uses. Fully ground, right-hand turning versions that produce precise drill holes thanks to their high concentricity and exact centring. PFERD offers spiral drills in the STEEL (118 ° point angle) and INOX (135 ° point angle) versions. High-performance drilling tools in the STEEL in HSSG (M2) version for industrial uses. Fully ground right-hand turning version with cross grinding that produces precise drill holes thanks to their high concentricity and exact centring.
Attributes
Angle
118 °
Length, total
86 mm
Neu im Jahr
2022
RPM from, grey cast iron, white cast iron
620 RPM
RPM from, steels over 700 N/mm²
1230 RPM
RPM from, steels up to 700 N/mm²
1540 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CFRP)
920 RPM
RPM of, hard non-ferrous metals
1540 RPM
RPM of, soft non-ferrous metals
1840 RPM
RPM up to, grey cast iron, white cast iron
1540 RPM
RPM up to, hard non-ferrous metals
3070 RPM
RPM up to, soft non-ferrous metals
3680 RPM
RPM up to, steels over 700 N/mm²
1540 RPM
RPM up to, steels up to 700 N/mm²
2150 RPM
RPM up to, thermoplastics, fibreserv. plastics (GFK/CFK)
2450 RPM
Series
byly_SPB_DIN338_HSSG_N_STEEL
Spiral angle, from
25 °
Spiral angle, up to
30 °
Spiral length
52 mm
Version
STEEL
Ø
5.2 mm
