Description

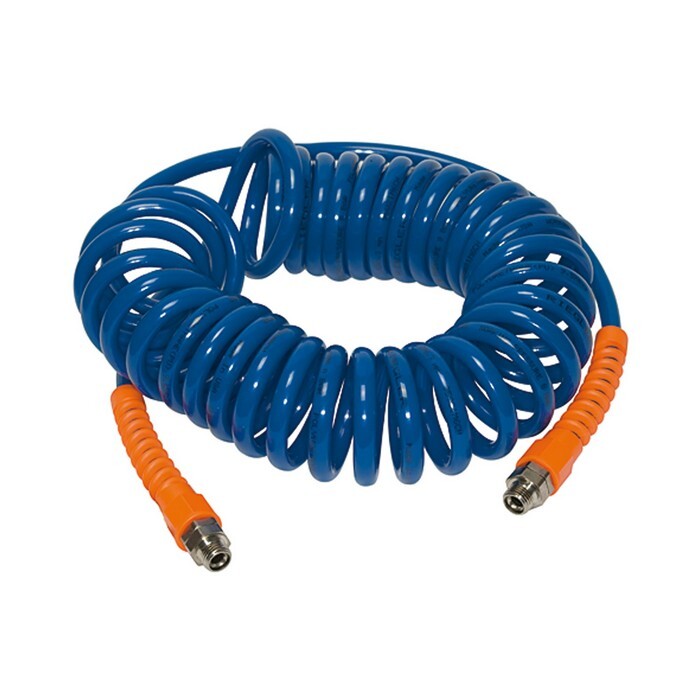

Spiral hose, Fitting and kink protection spring, PU, G 3/8, Hose Ø 12x8, PN at 23 °C max. 9 bar, Length 6 m. Standard type or with braided reinforcements for high pressures. These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional nylon spiral hose, but with less tendency to loop and significantly better resistance to abrasion. There is consequently less danger of scratching coated or sensitive surfaces. The hose is extremely flexible and non-kinking.
Attributes
Exterior-Ø
12 mm
External thread
G 3/8 ″
External thread mm
16,66 mm
Hose Ø
12x8 mm
Inner core
Polyurethane
Internal-Ø
8 mm
Length (battery)
6 m
Material
Polyurethane
Max. operating pressure at 23 °C
9 bar
Maximum temperature
60 °C
Minimum temperature
-20 °C
Operating pressure
10 bar
Operating temperature max.
74 °C
Operating temperature min.
-40 °C
Outer ceiling
Polyurethane
Outer winding-Ø
80 mm
Screw thread
G 3/8
Version
Plug DN 7.2
Wall thickness
2 mm
Working length max.
6,0 m
