Description

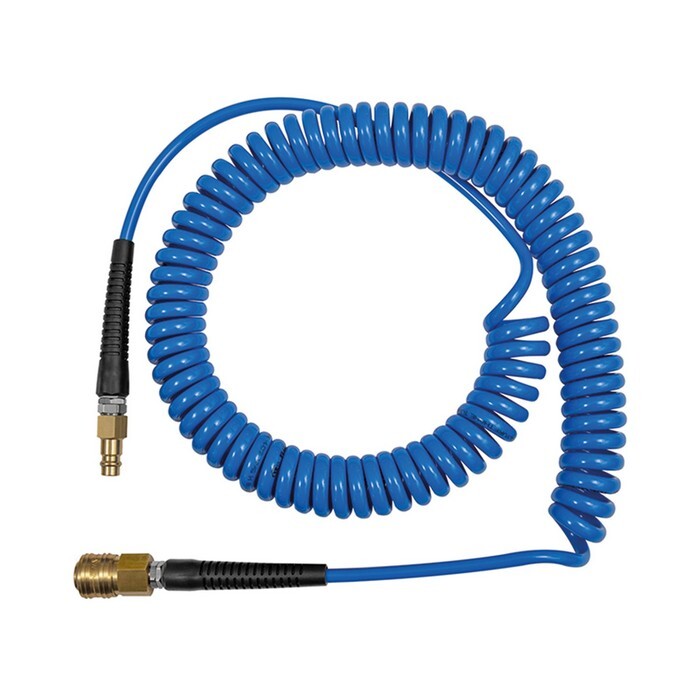

Spiral hose coupling set, Standard coupling I.D. 7.2, PU, Hose Ø 8x5, PN at 23 °C max. 12 bar, Length 3.0 m. These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion. There is consequently less danger of scratching coated or sensitive surfaces. The hose is extremely flexible and non-kinking. Not suitable for direct attachment to pulsating tools. We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Attributes
Hose Ø
8x5 mm
Material
Polyester‐Polyurethan
Max. operating pressure at 23 °C
12 bar
Operating temperature max.
60 °C
Operating temperature min.
-20 °C
Outer winding-Ø
42 mm
Riegler article number
158174
Windings
29
Working length max.
3,0 m
