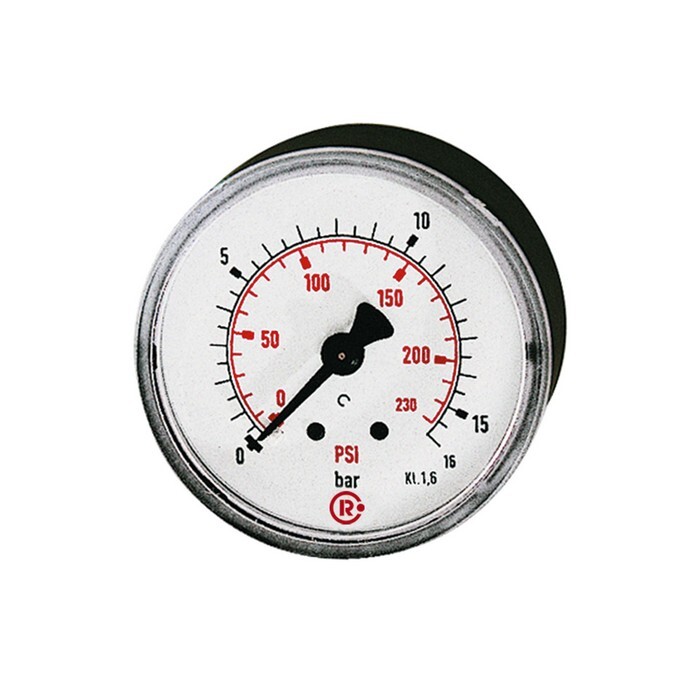

Standard pressure gauge
AG 1/4", 0-16 bar/235 psi, D 63 mm Plastic, rear connection, centricItem-no.: 1168612Supplier number: 218-KDEAN: 4047322034920
Quantity:
1 PiecePackable
Item available in 20 variants:
Price and stock visible after login
Description
Standard pressure gauge, Double scale, Connection, rear, centr., G 1/4, Goods class 1.6, Measurement range 0-16 bar/230 psi, Ø 63. Bourdon-tube pressure gauge in standard design. Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Attributes
Ambient temperature max.
60 °C
Ambient temperature min.
-20 °C
Connection
G 1/4
Connection position
Rear, centric
Description
Pressure gauge Ø 63 mm, G 1/4 AG, 0 - 16 bar/230 psi
Diameter
63 mm
Housing
Plastic
Material process connection
Copper alloy
Measuring element
Copper alloy
Measuring range max. bar
16
Measuring range max. psi
230
Measuring range min. bar
0
Measuring range min. psi
0
Medium temperature max.
60 °C
Pointer movement
Copper alloy
Quality class
1.6
Riegler article number
101398
Scale graduation in the bar range
0,5 bar
Type
111.12
Viewing window
Crystal clear plastic
