Riegler

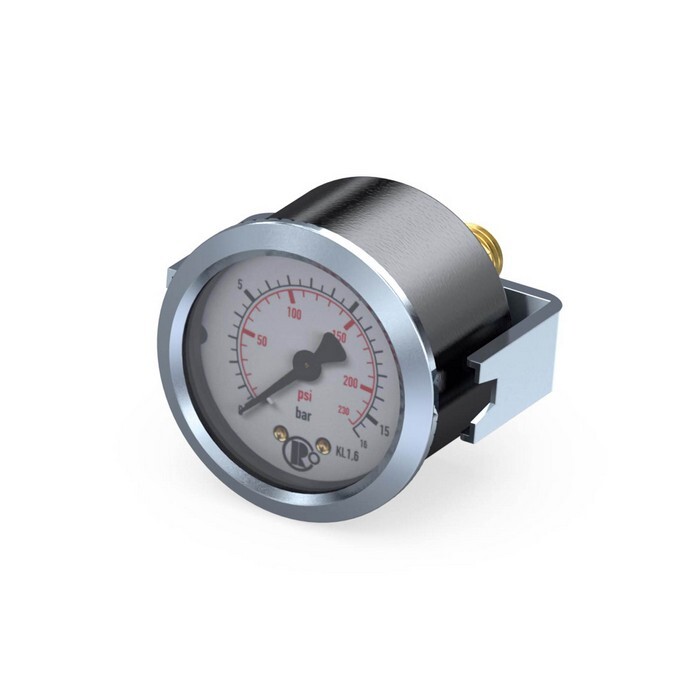

Standard-Manometer, Dreikantfro. verch.

AG 1/8", -1 - 0 bar für Vakuum, D 40 mm Doppelskala, Anschluss hinten, zentrisch
Item-no.: 1243426Supplier number: 110.70customs tariff number: 90262040EAN: 4047322015523

Quantity: ​​ 1 PiecePackable

Item available in 33 variants:
Short-term Sourcing

Description
Standard pressure gauge, triangle front ring, Connection, rear, centric, G 1/8, Goods class 2.5, Measurement range -1 / 0 bar, Ø40. Bourdon-tube pressure gauge in standard design, either with panel-mounting bezel made of chrome-plated or black sheet steel or with 3-hole bezel made of chrome-plated sheet steel. Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Attributes
Ambient temperature max.
60 °C
Ambient temperature min.
-20 °C
Connection
G 1/8
Connection position
Rear, centric
Diameter
40 mm
Housing
Sheet steel
Lower / upper measuring range limit
Vacuum
Material process connection
Copper alloy
Measuring element
Copper alloy
Measuring range max. bar
0 bar
Measuring range max. psi
0
Measuring range min. bar
-1 bar
Measuring range min. psi
-14.5
Medium temperature max.
60 °C
Medium temperature min.
-20 °C
Pointer movement
Copper alloy
Quality class
2.5
Riegler article number
101911
Scale graduation in the bar range
0,05 bar
Screw thread
G 1/8 AG
Type
111.12
Viewing window
Plastic
