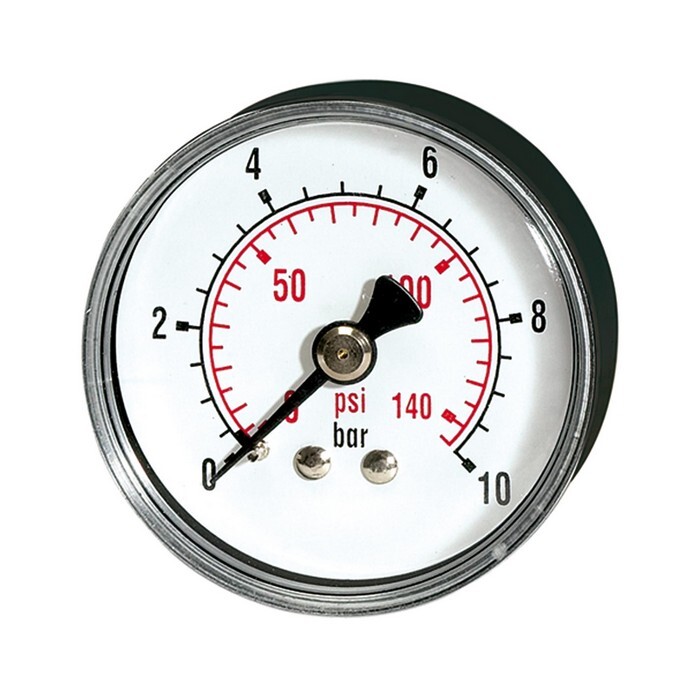

Standard pressure gauge, pressure line
AG 1/8", D40mm, 0-10 bar, -20°C - 60°C Plastic, rear connectionItem-no.: 1247642Supplier number: 110.46-KDEEAN: 4047322175760
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Standard pressure gauge »pressure line« Connection, rear, centric, G 1/8, Goods class 2.5, Measurement range 0-10 bar/145 psi, Ø40. Low-priced series of standard pressure gauges available in all popular diameters with the most frequently requested measuring ranges. Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Attributes
Ambient temperature max.
60 °C
Ambient temperature min.
-20 °C
Connection
G 1/8
Connection position
Rear, centric
Diameter
40 mm
Housing
Plastic
Lower / upper measuring range limit
Overpressure
Material process connection
Copper alloy
Measuring element
Copper alloy
Measuring range max. bar
10
Measuring range min. bar
0
Medium temperature max.
60 °C
Medium temperature min.
-20 °C
Pointer movement
Copper alloy
Quality class
2,5
Riegler article number
115023
Scale graduation in the bar range
0,5 bar
Screw thread
G 1/8 AG
Version
Bourdon tube pressure gauge
Viewing window
Plastic
