Technical tradeIndustrial suppliesMachine partsLocks and latchesIndexing plungers, locking plungers, resilient thrust pieces
1829424 #1
1829424 #11829424 #2

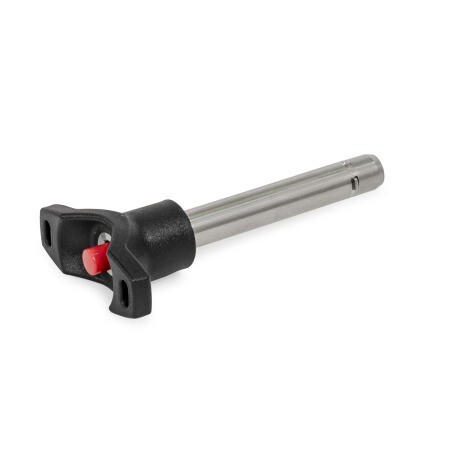

Ganter

Steckbolzen

114.8-20-140 Edelstahl
Item-no.: 1829424Supplier number: 114.8-20-140customs tariff number: 73182900EAN: 4063632062279
Quantity: ​​ 1 PiecePackable​
Short-term Sourcing

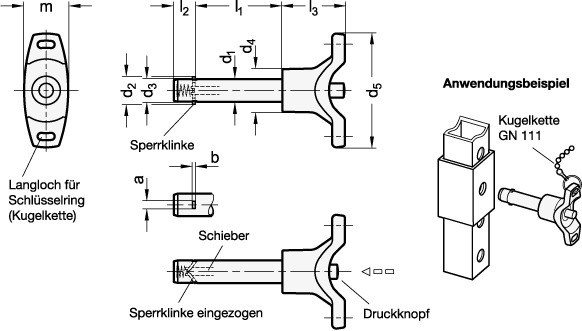

Attributes
A
4.8
Belastbarkeit F in kN ≈zweischnittige Scherfestigkeitnach DIN 50141 (Bruchkraft)Hinweis beachten
228
Diameter d
20
L2
14.8
Length l1
140
RoHS
Ja
Weight
0.385 kg
b
1.2
d2
22.7
d3
19.8
d4
25
d5
58
l3
34.5
m
27
