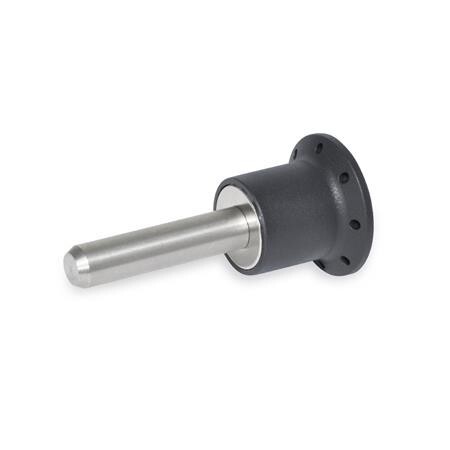

Socket pin with holding magnet

Locking pins GN 124.1 are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials. A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention. The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
