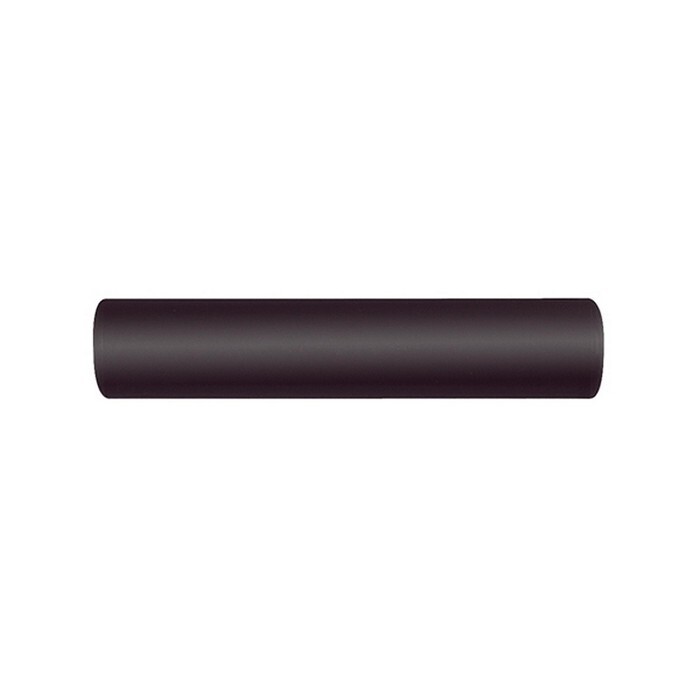

Plug-in nipple Blue series for
Outer hose Ø 16 mmItem-no.: 1373878Supplier number: 178.016customs tariff number: 39174000EAN: 4047322499408
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Plug nipple »Blue Series«, plug nipple 16 mm, pmax short term 15 bar, Plastic. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic. Only recommended for use in combination with quick connectors of the �Blue Series�. Suitability testing for use with other series is the responsibility of the user.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
L1
56,0 mm
Material
Plastic
Medium
Compressed air, neutral and non-hazardous gases and liquids
Plug nipple
16 mm
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
135803
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
Working pressure min.
-0,95 bar
