Description

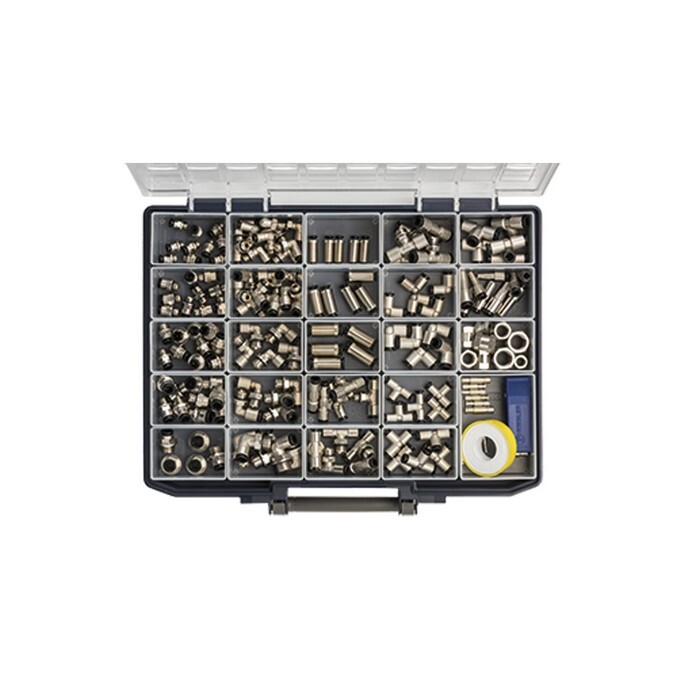

Assortment box plug connectors »click-clock« . Practical, high-quality assortment of the most popular parts in our »click-clock« series of push-in fittings, manufactured in nickel-plated brass and packaged in a sturdy plastic case. Total of 30 different small part types, conveniently arranged in 24 plastic compartments. The inserts can be removed and rearranged inside the case according to individual needs. All inserts are labeled with the article numbers of the parts they contain. Parts included: 45 male connectors G 1/8-6, G 1/4-4, G 1/4-6, G 1/4-8, G 3/8-8 35 swivel type male elbows G 1/8-6, G 1/8-8, G 1/4-4, G 1/4-6, G 1/4-8 15 unions 4, 6, 8 mm 10 union elbows 6, 8 mm 15 union tees 4, 6, 8 mm 15 swivel type male branch tees G 1/8-6, G 1/4-6, G 1/4-8 9 reducers with push-in plug 8/6, 10/6, 10/8 10 plugs 6, 8 mm 10 sockets G 1/8, G 1/4, G 3/8 1 PTFE sealing tape 1 hose cutter
Attributes
Clamping ring
Stainless steel
Description
Assortment box quick connectors "click-clock" series
Loosening ring
Hostaform
Material
Nickel-plated brass
Medium
Compressed air
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
click-clock
Recommended hose
PA, PU
Riegler article number
108821
Sealing material
NBR
Working pressure max.
16 bar
Working pressure min.
-0,99 bar
