Steckverschraubung gerade, Außen-6kant
AG 1/2", SD12, SW18, Spannring, O-Ring Messing vernickelt, Serie metallicaItem-no.: 1246647Supplier number: 845.012-12customs tariff number: 74122000EAN: 4047322390583
Quantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Straight push-in fitting »metallica«, G 1/2 o., for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar, nickel-plated brass . Push-in fittings, manufactured entirely in nickel-plated brass. All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion, all fittings in this series can thus also be used at high temperatures (medium compressed air).
Attributes
Clamping ring
Stainless steel
External hexagon
with
For outer hose Ø
12 mm

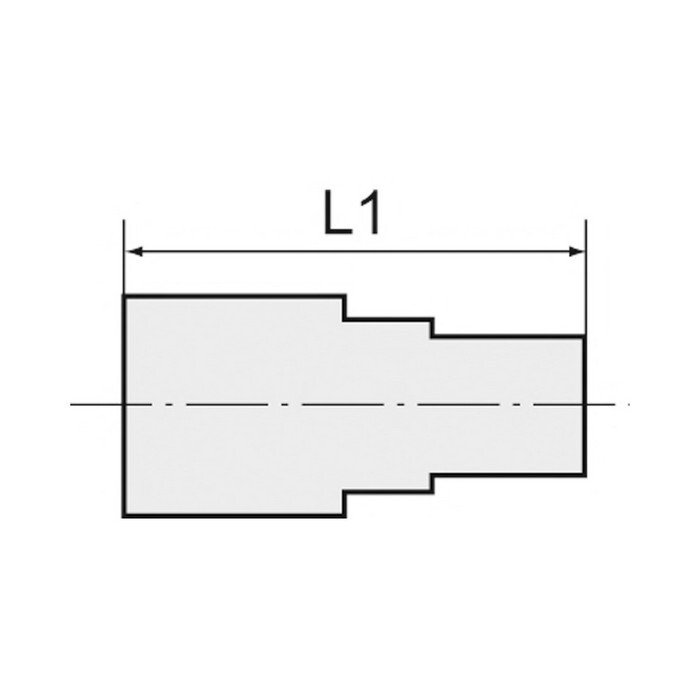

L1
31,5 mm
Loosening ring
Nickel-plated brass
Material
Nickel-plated brass
Medium
Compressed air
Operating temperature max.
150 °C
Operating temperature min.
-20 °C
Product range
metallica
Riegler article number
108870
SW
18 mm
Screw thread
G 1/2
Working pressure max.
16 bar
Working pressure min.
-0,98 bar
