Ganter

Levelling feet

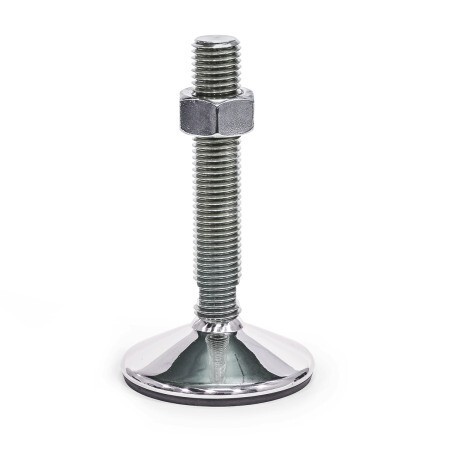

GN 17-80-M24-300-C3-TK stainless steel
NI - Edelstahl
Item-no.: 1660653Supplier number: 17-80-M24-300-C3-TKcustoms tariff number: 73269098EAN: 4045525853041

Quantity: ​​ 1 PiecePackable

Short-term Sourcing

Description
Leveling feet GN 17 are suitable for use in aggressive environments. The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example. The leveling feet are supplied assembled and cannot be disassembled.

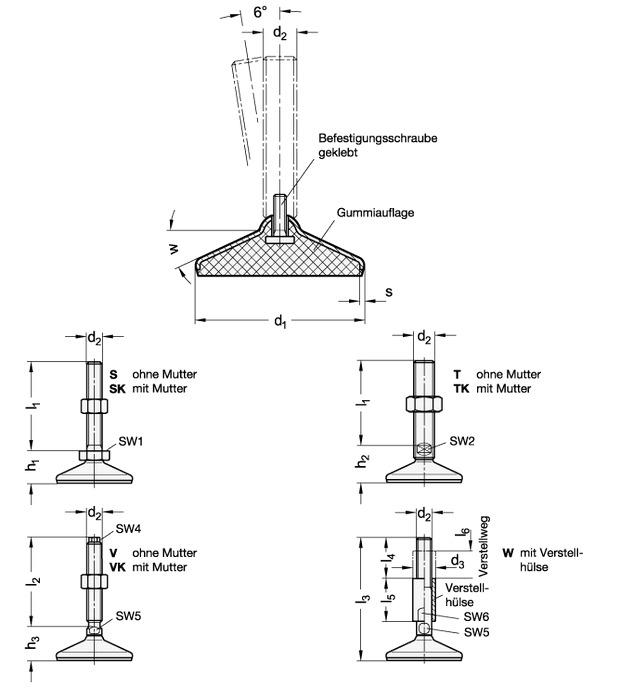

Attributes
Foot diameter d1
80
Form (foot plate)
C3 - polished, vulcanised rubber, black
Length l1 (T/TK)
300
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 24
Spindle variant
TK - with nut, spanner flat at the bottom
Weight
1.447 kg
h2
41
s
2
sw2
19
w in °
26
x1
36
