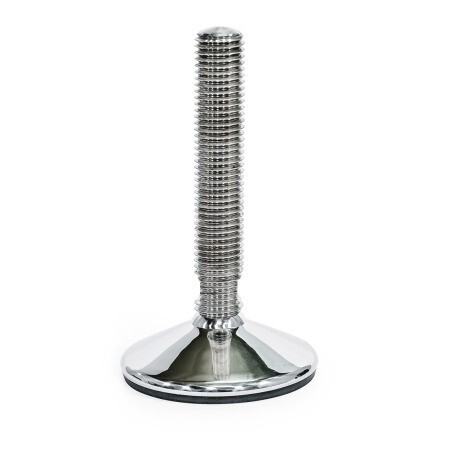

leveling foot
GN 18-80-M20-75-C3-T stainless steelNI - Edelstahl
Item-no.: 1660314Supplier number: 18-80-M20-75-C3-Tcustoms tariff number: 73269098EAN: 4045525854970
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Leveling feet GN 18 are particularly suitable for use in aggressive environments. The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example. The leveling feet are supplied assembled and cannot be disassembled.

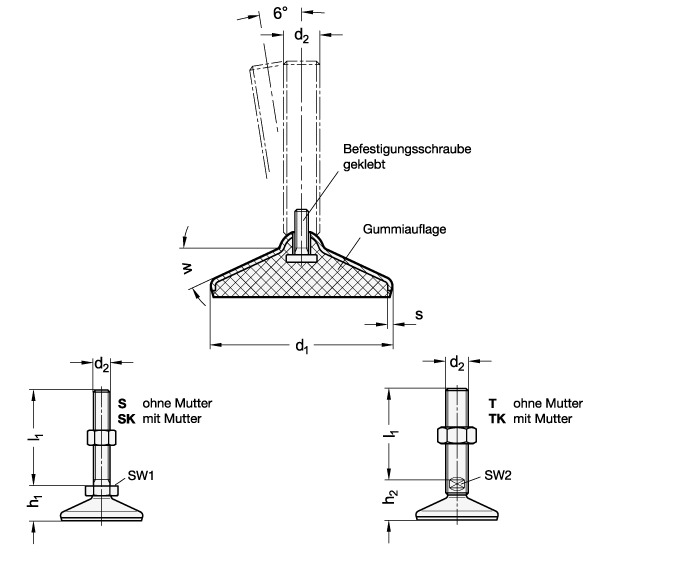

Attributes
Foot diameter d1
80
Form (foot plate)
C3 - polished, vulcanised rubber, black
Length l1 (T/TK)
75
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 20
Spindle variant
T - without nut, spanner flat at the bottom
Weight
0.349 kg
h2
39
s
2
sw2
15
w in °
26
x1
32
