leveling foot
GN 30-50-M8-63-A2-SST - Stahl
Item-no.: 1344925Supplier number: 30-50-M8-63-A2-Scustoms tariff number: 73269098EAN: 4045525984530
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Leveling feet GN 30 will be delivered mounted and are not removable.
Attributes
Foot diameter d1
50
Form (foot plate)
A2 - steel, galvanised, rubber inlaid, white
Form A2
8
Length l1 (S/SK)
63
Material
ST - Steel
RoHS
Ja
Screw thread d2
M 8
Spindle variant
S - without nut, external hexagon at the bottom
Weight
0.104 kg

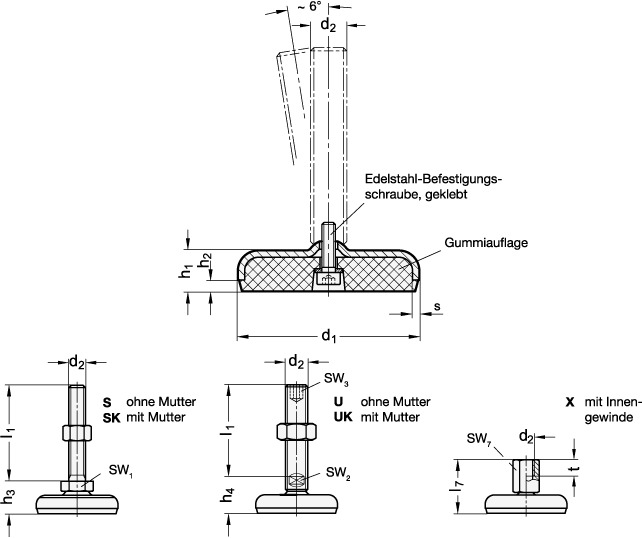

d1
50
d2
M 8
h1
14.5
h2
3.5
h3
23
s
3
sw1
17
