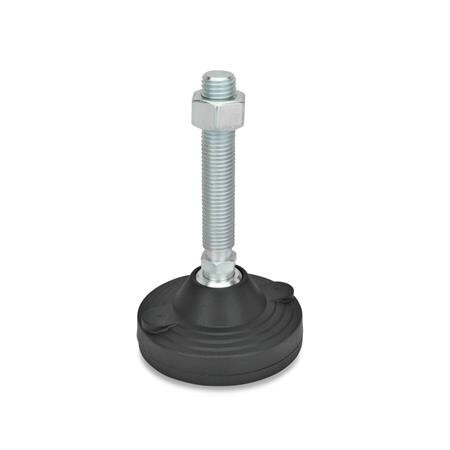

Levelling foot with rubber pad
GN 245-125-M30-186-BG ElesaPA - plastic, polyamide
Item-no.: 1163348Supplier number: 245-125-M30-186-BGEAN: 4045525108776
PU (Packaging): 4 PieceQuantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Leveling feet GN 245 are known for their high static load capacity. The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the plastic socket could occur. The values given above have been arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load in relation to the foot.
Attributes
Foot diameter d1
125
Form
BG - with nut, with rubber pad
L2
64
Material
PA - plastic, polyamide
RoHS
Ja
SW
30
Screw thread d2
M 30
Static load capacity in kN(see note)
40
Thread length l1
186
Weight
1.720 kg
d3
12.5
k
95
l3
45
l4
23
