Adjustable foot with non-slip KU cap
GN 339-29-M8-55-KR-NI stainless steelNI - Edelstahl
NI - Stainless steel
Item-no.: 1347634Supplier number: 339-29-M8-55-KR-NIcustoms tariff number: 73269098EAN: 4045525963337
PU (Packaging): 4 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Leveling feet GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw. For this reason they offer the advantage of reduced height. The gliding and/or the non-gliding protective cap is safely fixed in the foot.
Attributes

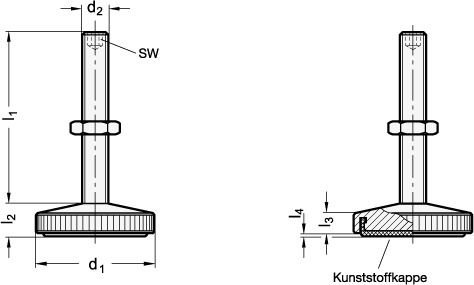

Foot diameter d1
29
Form
KR - with plastic cap, non-slip
Form KR
0.4
L2
8
Material
NI - Stainless steel
RoHS
Ja
SW
4
Screw thread d2
M 8
Static load capacity
13 kN
Static load capacity in kN
13
Thread length l1
55
Weight
0.043 kg
l2 ≈
8
l3
5
l3 ≈
5
l4 Form KS
1
