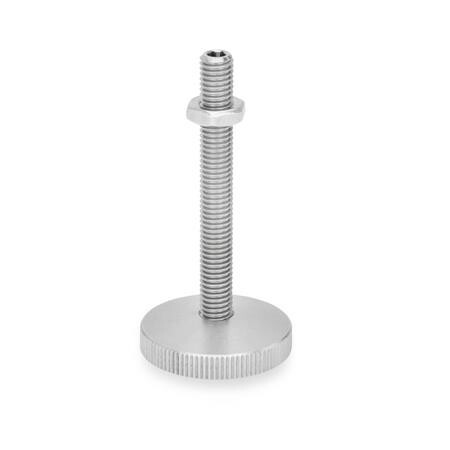

Adjustable foot with non-slip KU cap
GN 339-36-M10-45-KR-NI stainless steelNI - Edelstahl
Item-no.: 1347636Supplier number: 339-36-M10-45-KR-NIcustoms tariff number: 73269098EAN: 4045525963368
PU (Packaging): 4 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Leveling feet GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw. For this reason they offer the advantage of reduced height. The gliding and/or the non-gliding protective cap is safely fixed in the foot.

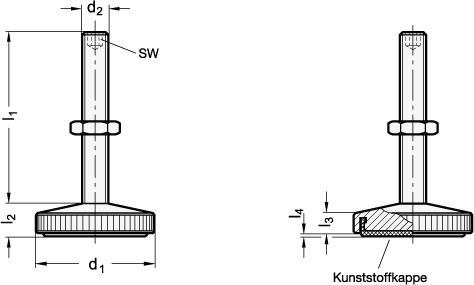

Attributes
Foot diameter d1
36
Form
KR - with plastic cap, non-slip
Form KR
0.5
L2
9
Material
NI - Stainless steel
RoHS
Ja
SW
5
Screw thread d2
M 10
Static load capacity
18 kN
Static load capacity in kN
18
Thread length l1
45
Weight
0.060 kg
l2 ≈
9
l3
6
l3 ≈
6
l4 Form KS
1
