Description
Leveling feet GN 41 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feet to be used in every situation. The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes. The leveling feet are supplied fully assembled and are not removable.
Attributes
Ausführung T / TK / U / UK
12
Foot diameter d1
40
Form (foot plate)
D0 - without rubber pad
Length l1 (T/TK/U/UK)
125
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 16
Spindle variant
TK - with nut, spanner flat at the bottom
Weight
0.227 kg

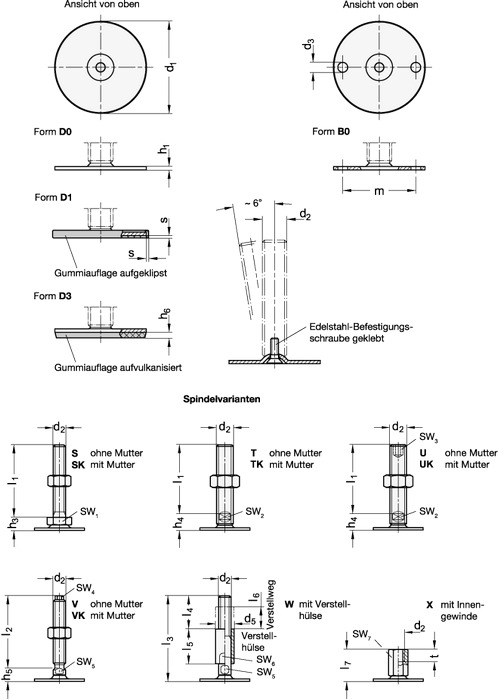

d1
40
d2
M 16
h1
2
h4
17
m
30
sw2
12
