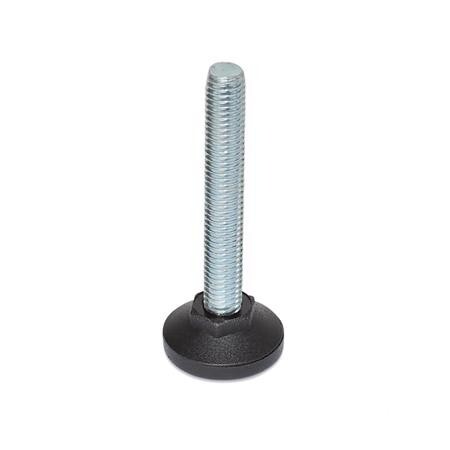

Rigid levelling foot
GN 839-40-M8-52 Elesa 431037-SKU - Plastic
Item-no.: 1353712Supplier number: 839-40-M8-52EAN: 4045525113251
Quantity:
1 PiecePackable
Item available in 51 variants:
Price and stock visible after login
Description
Leveling feet GN 839 are used for applications in cases where no jointed link is required between foot and adjusting screw. The cross slot drive at the underside has been designed for rapid pre-assembly. The value for the load-bearing capacity given in the table is an approximate value which, depending on conditions of use, may cause the plastic leveling feet to break. The appropriate safety coefficient must be taken into account.
Attributes
Foot diameter d1
40
L2
13.5
Material
KU - Plastic
RoHS
Ja
SW
17
Screw thread d2
M 8
Static load capacity in kN(note)
2.5
Statische Belastbarkeit (Hinweis beachten)
2.5 kN
Thread length l1
52
Weight
0.027 kg
