Rigid levelling foot
GN 839.5-25-M6-26 Elesa 431101-SKU - Plastic
Item-no.: 1340793Supplier number: 839.5-25-M6-26EAN: 4045525112735
Quantity:
1 PiecePackable
Item available in 36 variants:
Price and stock visible after login
Description
Leveling feet GN 839.5 are used for applications in cases where no jointed link is required between foot and adjusting screw. The cross slot drive at the underside has been designed for rapid pre-assembly. The value for the load-bearing capacity given in the table is an approximate value which, depending on conditions of use, may cause the plastic leveling feet to break. The appropriate safety coefficient must be taken into account.

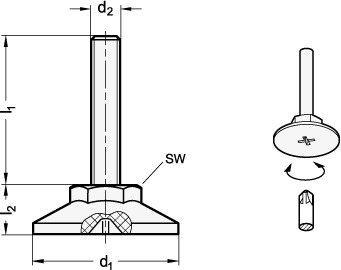

Attributes
Foot diameter d1
25
L2
11
Material
KU - Plastic
RoHS
Ja
SW
13
Screw thread d2
M 6
Statische Belastbarkeit (Hinweis beachten)
1.5 kN
Thread length l1
26
Weight
0.007 kg
