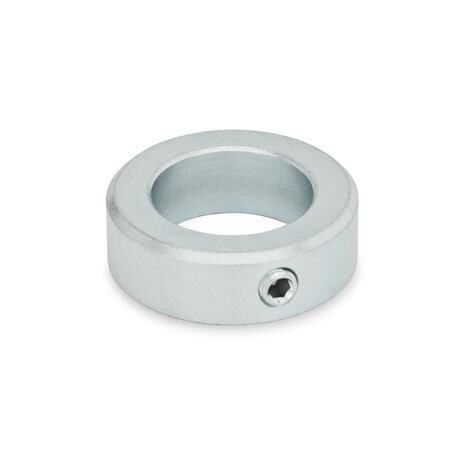

Set collar
GN 705-18-E-ZB galvanised, blue chromatedST - Steel
Item-no.: 1211327Supplier number: 705-18-E-ZBcustoms tariff number: 73182900EAN: 4045525828391
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Shaft collars GN 705 essentially comply with the versions of DIN 705. GN 705 also contains a number of practical intermediate sizes in addition to the DIN-versions as well as Type E (grub screw with internal hexagon). The clamping is done radially on the shaft or axle surface. Together with a dimpled hole or a groove at the collet diameter, the set collars can be positioned exactly and, at the same time, damage to the clamping point can be avoided.
Attributes
Form
E - Grub screw with hexagon socket DIN 914
Inner diameter d1
18
Material
ST - Steel
RoHS
Ja
Surface
ZB - galvanised, blue passivated
Weight
0.060 kg
b
14
d2
32
d3
M6x8
