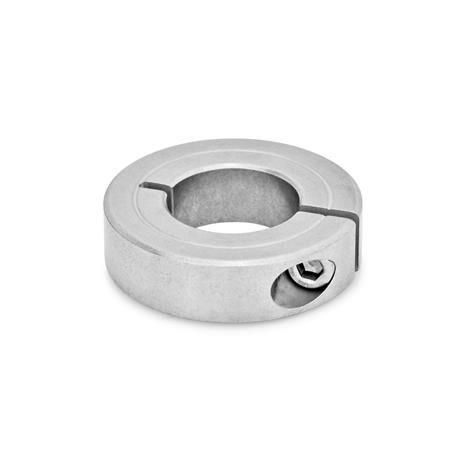

Slotted adjusting ring
GN 706.2-55-B28-NI stainless steelNI - Stainless steel
Item-no.: 1211437Supplier number: 706.2-55-B28-NIcustoms tariff number: 73269096EAN: 4045525529489
Quantity:
1 PiecePackable
Item available in 61 variants:
Price and stock visible after login
Description
Semi-split shaft collars GN 706.2 can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged. The thread d3 for sizes d1 = 16 to 36 is designed as a through hole, for sizes d1 = 42 and larger, it is designed as blind hole.
Attributes
A4
1.6
Borehole d2 (NI)
B 28
Borehole d2 filter
28
Borehole d2 filter 2
30
Material
NI - Stainless steel
Outer diameter d1
55
RoHS
Ja
Weight
0.197 kg
b
15
d3
M 6
sNI
3
x ≈max. screw head protrusion
0.5
xmax. Überstand Schraubenkopf
0.5
