Ganter

Stellungsanzeiger Edelstahl-Hohlwelle

GN 954.2-00.50-AN-R-GR
KT - Plastic
Item-no.: 1486811Supplier number: 954.2-00.50-AN-R-GRcustoms tariff number: 90318080EAN: 4045525772977
Quantity: ​​ 1 PiecePackable​
Item available in 972 variants:
Short-term Sourcing
Description

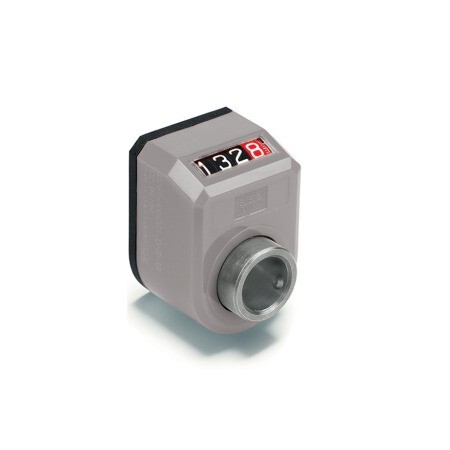

Position indicators GN 954.2 are fitted with a direct drive counter with digital read out. Both housing sections are ultrasonically welded, making the housing very tightly seated, stable and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.
Attributes
Anzeigeposition
AN - diagonal, top
Colour
GR - grey, RAL 7035, glossy
Corresponds to thread pitch
5
Counter
00.50
Display after 1 spindle revolution
00.50
Form
R - digits increasing with clockwise rotation
Installation position
AN - diagonal, top
Material
KT - Plastic
Max. speed/min.
500
RoHS
Ja
Weight
0.047 kg
Zählrichtung
R - Numerical value increasing with clockwise rotation
Zählwerk (mit zwei Dezimalstellen)
00.50
max.Drehzahl / min.
500
