Position indicator For linear units
GN 9534-40-4-L-ST-AR-ORST - Stahl
Item-no.: 1480067Supplier number: 9534-40-4-L-ST-AR-ORcustoms tariff number: 90318080EAN: 4045525800359
Quantity:
1 PiecePackable
Price and stock visible after login
Description

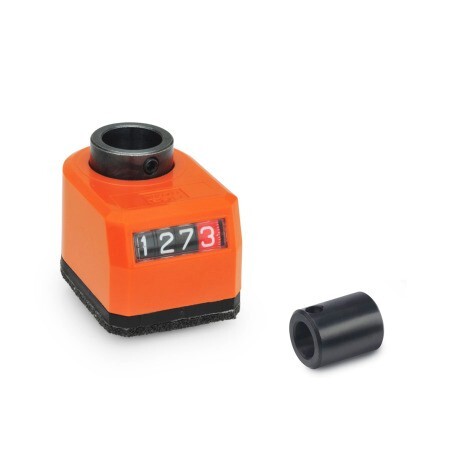

Position indicators GN 9534 are designed for attachment to configurable linear actuators. They are mounted to the spindle stem of the linear actuator using an adapter bushing and a grub screw. The directly driven counter with digital position display must be matched to the pitch of the threaded spindle. The housing is welded by ultrasound, making it particularly sturdy, tight and compact. The foam rubber seal prevents the transmission of vibration to the counter and acts as a seal.
Attributes
Colour
OR - orange, RAL 2004, glossy
Counter
0004.0
Diameter d
40
Form
L - Numerical value increasing with anti-clockwise rotation
Grub screw
M 5
Installation position
AR - oblique, bottom
L1
37
L2
30
Material
ST - Steel
Max. speed/min.
625
RoHS
Ja
Spindle pitch p
4
Weight
0.157 kg

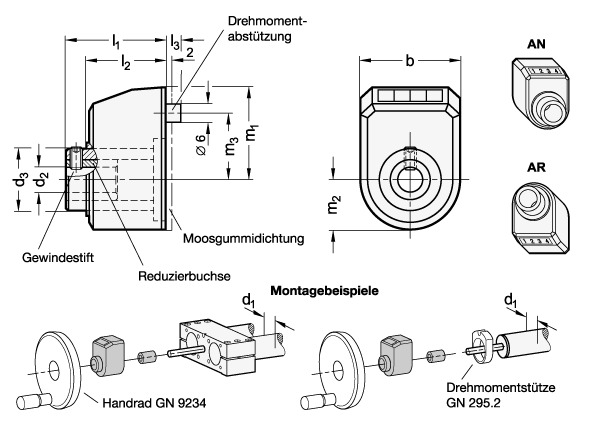

b
48
d2
12
d3
29
l3
6
m1
43.5
m2
23
m3
30
