Products
Ganter

Stellungsanzeiger

GN 953-0001.0-FR-L-SG Zahlenwert steigend bei Linksdrehung
KT - Plastic
Item-no.: 1660776Supplier number: 953-0001.0-FR-L-SGcustoms tariff number: 90318080EAN: 4045525860346

Quantity: ​​ 1 PiecePackable

Item available in 964 variants:
Short-term Sourcing

Description

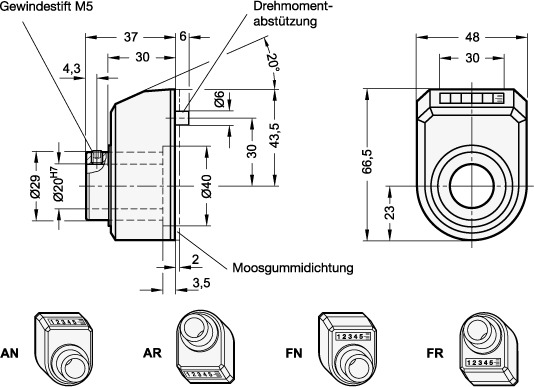

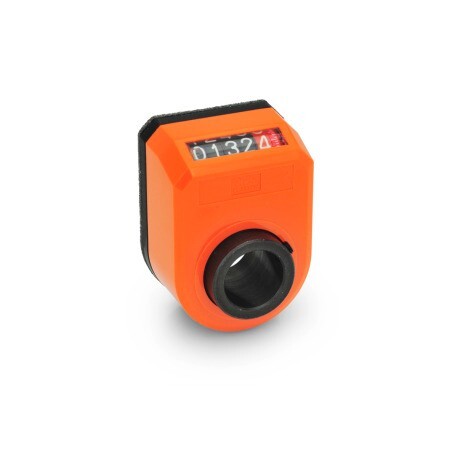

Position indicators GN 953 have a direct coupled drive with digital indication. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal. The numbers are easily legible and they are even enlarged by the magnifying effect of the sight glass.
Attributes
Anzeigeposition
FR - straight, bottom
Colour
SG - black-grey, RAL 7021, glossy
Corresponds to thread pitch
1
Counter
0001.0
Display after 1 spindle revolution
0001.0
Form
L - Numerical value increasing with anti-clockwise rotation
Installation position
FR - straight, bottom
Material
KT - Plastic
Max. speed/min.
1500
Max. speed/min.
1500
RoHS
Ja
Weight
0.100 kg
Zählrichtung
L - Numerical value increasing with anti-clockwise rotation
Zählwerk (mit einer Dezimalstelle)
0001.0
