Elesa

Position indicator, pendulum system

GN 000.8-42-2-R Elesa CE.70001
KT - Plastic
Item-no.: 1341063Supplier number: 000.8-42-2-REAN: 4045525001374

Quantity: ​​ 1 PiecePackable
Item available in 74 variants:
Short-term Sourcing

Description
Position indicators GN 000.8 are suitable for installation in various types of operating elements. Points of special interest are: Housing, spindles of pointers and sight glass are all in one piece welded by ultrasonic process. They are spray water proof and corrosion proof (Protection class IP 67). The pendulum system is mounted on ball bearings for accurate display, and operational up to 60°. The reducing ratio shows the number of revolutions (long red pointer) required per 1 complete revolution of the small black pointer.

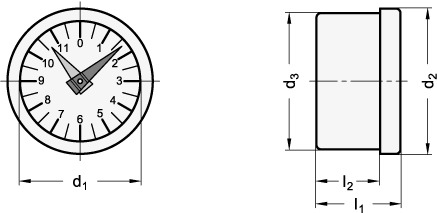

Attributes
Form
R - digits increasing with clockwise rotation
L1
30
L2
23
Material
KT - Plastic
Outer diameter d1
42
Reduction ratio
2
RoHS
Ja
Untersetzung Messwerk
2:1
Weight
0.074 kg
d2
49.8
d3
48.2
x1
72:1
x10
20:1
x11
40:1
x9
10:1
