Elesa

Position indicator grey

GN 954-004.0-AN-L-GR Elesa CE.84232
KT - Plastic
Item-no.: 1216644Supplier number: 954-004.0-AN-L-GREAN: 4045525416345
Quantity: ​​ 1 PiecePackable​
Item available in 978 variants:
Short-term Sourcing
Description

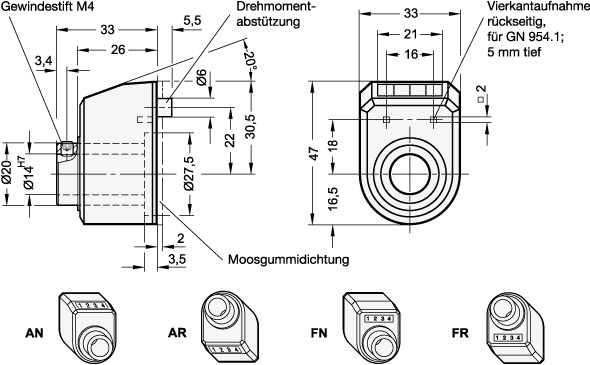

Position indicators GN 954 are fitted with a direct drive counter with digital read out. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.
Attributes
Anzeigeposition
AN - diagonal, top
Colour
GR - grey, RAL 7035, glossy
Corresponds to thread pitch
4
Counter
004.0
Display after 1 spindle revolution
004.0
Form
L - digits increasing with anti-clockwise rotation
Installation position
AN - diagonal, top
Material
KT - Plastic
Max. speed/min.
625
RoHS
Ja
Weight
0.043 kg
Zählrichtung
L - Numerical value increasing with anti-clockwise rotation
Zählwerk (mit einer Dezimalstelle)
004.0
max.Drehzahl / min.
625
