Products
Elesa

Position indicator orange

GN 954-004.0-AR-R-OR Elesa CE.84733
KT - Plastic
Item-no.: 1216650Supplier number: 954-004.0-AR-R-OREAN: 4045525416413

Quantity: ​​ 1 PiecePackable
Item available in 312 variants:
Short-term Sourcing

Description

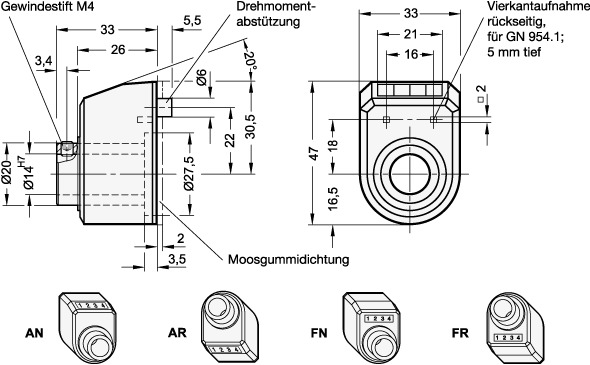

Position indicators GN 954 are fitted with a direct drive counter with digital read out. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.
Attributes
Colour
OR - orange, RAL 2004
Corresponds to thread pitch
4
Counter
004.0
Display after 1 spindle revolution
004.0
Form
R - digits increasing with clockwise rotation
Installation position
AR - oblique, bottom
Material
KT - Plastic
RoHS
Ja
Weight
0.043 kg
