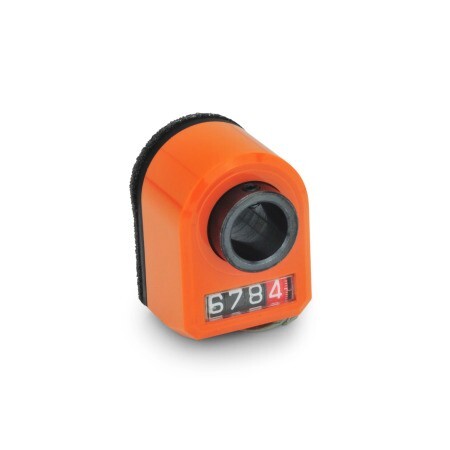

Position indicator orange

GN 954-005.0-FR-L-OR Elesa CE.85754
KT - Plastic
Item-no.: 1216672Supplier number: 954-005.0-FR-L-OREAN: 4045525416635

Quantity: ​​ 1 PiecePackable
Item available in 312 variants:
Short-term Sourcing

Description
Position indicators GN 954 are fitted with a direct drive counter with digital read out. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.
Attributes
Colour
OR - orange, RAL 2004
Corresponds to thread pitch
5
Counter
005.0
Display after 1 spindle revolution
005.0
Form
L - digits increasing with anti-clockwise rotation
Installation position
FR - straight, bottom
Material
KT - Plastic
RoHS
Ja
Weight
0.043 kg
max.Drehzahl / min.
500
