Ganter

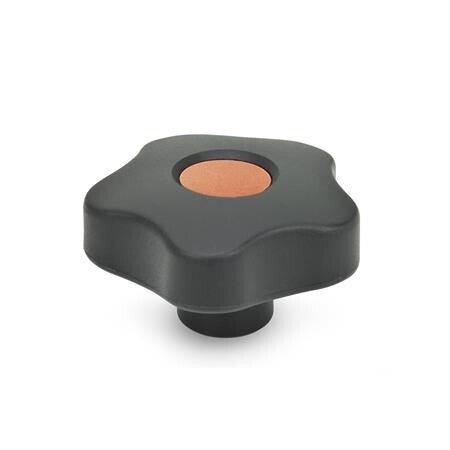

Star grip, cover plug orange

GN 5337.2-32-M5-E-DOR
KU - Plastic
Item-no.: 1484075Supplier number: 5337.2-32-M5-E-DOREAN: 4045525669901
Quantity: ​​ 1 PiecePackable​
Item available in 151 variants:
Short-term Sourcing
Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Colour cover cap
DOR - orange, RAL 2004, matt
Form
E - with cover cap (threaded blind hole)
Handle diameter d1
32
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (Form E)
M 5
Weight
0.013 kg
d5
15
d6
10
h1
23
h2
10
t1
12
