Ganter

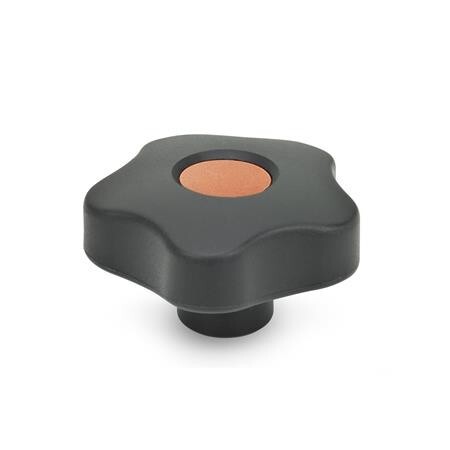

Star grip, cover plug orange

GN 5337.2-84-M16-E-DOR
KU - Plastic
Item-no.: 1484210Supplier number: 5337.2-84-M16-E-DOREAN: 4045525671416

Quantity: ​​ 1 PiecePackable
Item available in 151 variants:
Short-term Sourcing

Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Colour cover cap
DOR - orange, RAL 2004, matt
Form
E - with cover cap (threaded blind hole)
Handle diameter d1
84
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (Form E)
M 16
Weight
0.098 kg
d5
28
d6
22
h1
44
h2
21
t1
25
