1484191 #1
Ganter

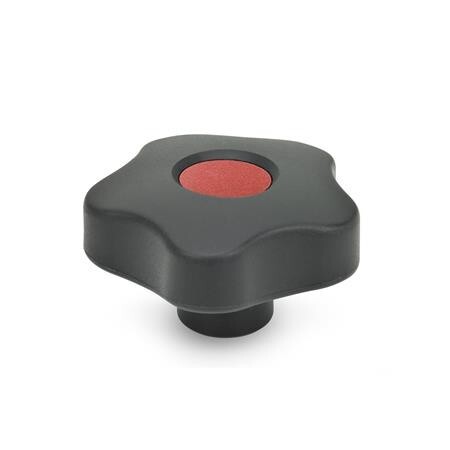

Star grip, cover plug red

GN 5337.2-74-M16-E-DRT
KU - Plastic
Item-no.: 1484191Supplier number: 5337.2-74-M16-E-DRTEAN: 4045525671225
Quantity: ​​ 1 PiecePackable​
Item available in 151 variants:
Short-term Sourcing
Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Colour cover cap
DRT - red, RAL 3000, matt
Form
E - with cover cap (threaded blind hole)
Handle diameter d1
74
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (Form E)
M 16
Weight
0.059 kg
d5
26
d6
17
h1
43.5
h2
22
t1
31
