1484162 #1
Ganter

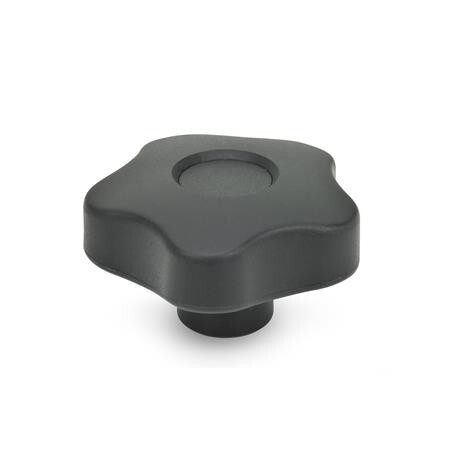

Star grip

GN 5337.2-63-M8-E
KU - Plastic
Item-no.: 1484162Supplier number: 5337.2-63-M8-EEAN: 4045525670938
Quantity: ​​ 1 PiecePackable​
Item available in 151 variants:
Short-term Sourcing
Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Form
E - with cover cap (threaded blind hole)
Handle diameter d1
63
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (Form E)
M 8
Weight
0.051 kg
d5
22
d6
19
h1
37
h2
16
t1
26
