Star knob, safety, lockable
GN 5337.9-63-M8-20-SU Elesa 76731PA - plastic, polyamide
Item-no.: 1205343Supplier number: 5337.9-63-M8-20-SUEAN: 4045525892255
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description

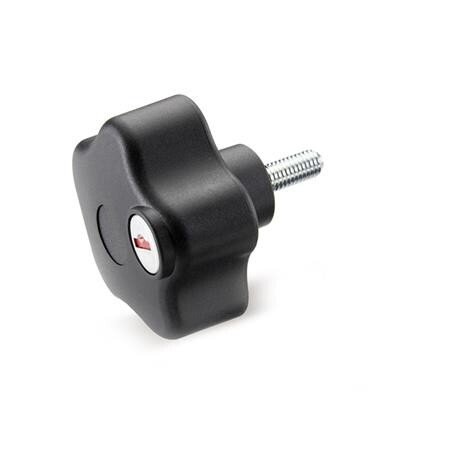

Safety star knobs GN 5337.9 are designed to prevent unauthorised use. To engage and release, the key must be inserted and turned by 180°, creating a formlock between the handle and the threaded bushing or screw. Turning the key back by 180° will release the connection. The key can be inserted and pulled off in both end positions. Two keys per star knob are included with the delivery.
Attributes
Form
SU - with key (locking different)
Handle diameter d1
63
Length l
20
Material
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 8
Weight
0.106 kg
d3
23
h1
44
h2
17
