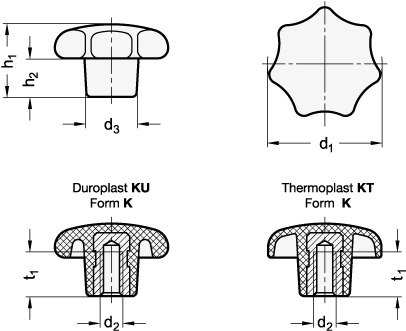

Star grip with stainless steel bushing
DIN 6336-KT-80-M16-K-NIKT - Plastic
Item-no.: 1218158Supplier number: 6336-KT-80-M16-K-NIcustoms tariff number: 73181639EAN: 4045525901131
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 54 variants:
Price and stock visible after login
Description
Star knobs DIN 6336 with bore H7 are available as GN 6336.1 and GN 6336.2.
Attributes
Form
K - with threaded bush
Handle diameter d1
80
Material
KT - Plastic
Material socket
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 16
Socket (KU)
24
Weight
0.135 kg
d3
35
h1
50
h2
25
t1 min. bushing (KT)
30
