1205250 #1
Elesa

Star grip with threaded bush

GN 5337.2-63-M12-E Elesa 70014
KU - Plastic
Item-no.: 1205250Supplier number: 5337.2-63-M12-EEAN: 4045525282308
Quantity: ​​ 1 PiecePackable​
Item available in 151 variants:
Short-term Sourcing
Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Form
E - with cover cap (threaded blind hole)
Handle diameter d1
63
Material
KU - Plastic
RoHS
Ja
Screw thread d2 (Form E)
M 12
Weight
0.047 kg

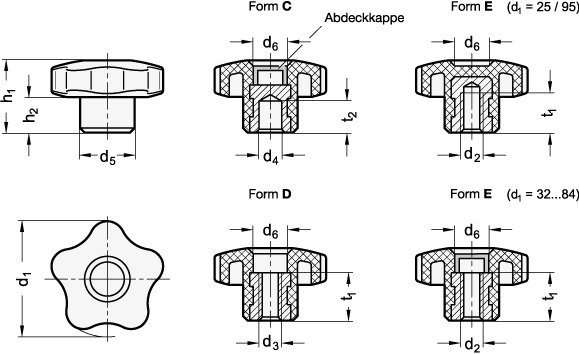

d5
22
d6
19
h1
37
h2
16
t1
26
