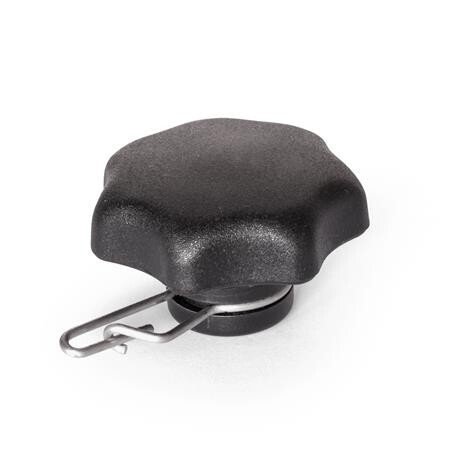

Star grip with eyelet
GN 6336.13-32-M6-A stainless steelPA - plastic, polyamide
Item-no.: 1224182Supplier number: 6336.13-32-M6-AEAN: 4045525971394
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Star knobs GN 6336.13 can be captive-attached to a base element with the help of a ball chain or a retaining cable. The star knobs are supplied ready assembled (with retaining ring and ball chain or retaining cable).

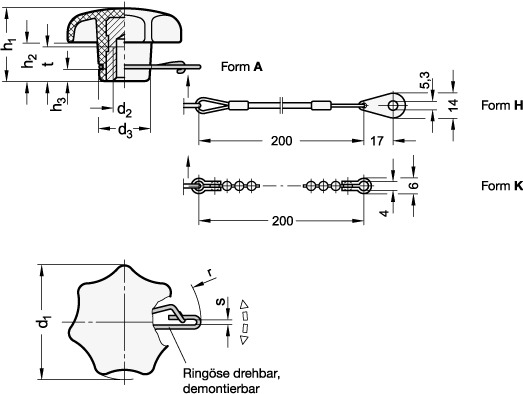

Attributes
Form
A - only with eyelet
Handle diameter d1
32
Material
PA - plastic, polyamide
R
22.3
RoHS
Ja
Screw thread d2
M 6
Weight
0.012 kg
d3
14
h1
20
h2
10
h3
3.5
s
2.8
tmin.
12
