1205220 #1
Elesa

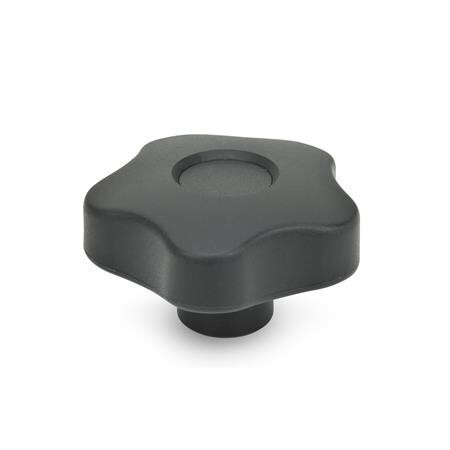

Star knob with blind hole bushing

GN 5337.2-40-B8-C Elesa 69892
KU - Plastic
Item-no.: 1205220Supplier number: 5337.2-40-B8-CEAN: 4045525281905
Quantity: ​​ 1 PiecePackable​
Item available in 151 variants:
Short-term Sourcing
Description
Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
Attributes
Borehole diameter d4 (Form C)
B 8
Form
C - with cover cap (blind hole H9)
Handle diameter d1
40
Material
KU - Plastic
RoHS
Ja
Weight
0.036 kg
d5
17
d6
13
h1
27
h2
12
t2 min.
14
