Elesa

Stainless steel star knob screw

GN 5337.4-50-M10-20 Elesa 166491
PA - plastic
Item-no.: 1205313Supplier number: 5337.4-50-M10-20EAN: 4045525282513

Quantity: ​​ 1 PiecePackable
Item available in 51 variants:
Short-term Sourcing

Description
Furthermore the underside of the knob GN 5337.4 is not recessed or hollowed. This means that if they are fitted with a stainless steel bushing they will meet the standards and requirements for hygiene applications.
Attributes

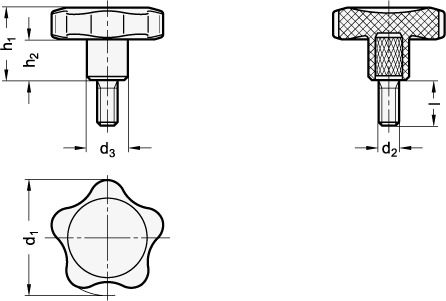

Handle diameter d1
50
Length l
20
Material
PA - plastic
RoHS
Ja
Screw thread d2
M 10
Weight
0.050 kg
d3
18
h1
31
h2
17
h2 ≈
17
