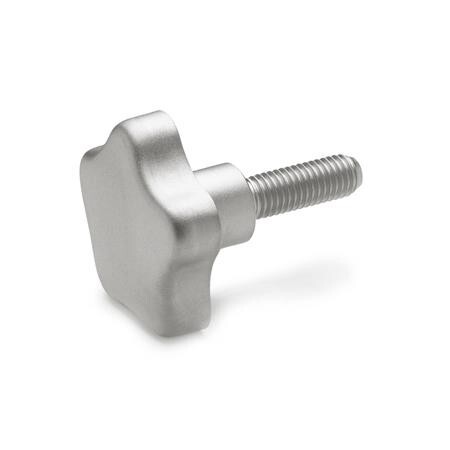

Star knob screw
GN 5334-50-M10-20 stainless steelNI - Stainless steel
Item-no.: 1076123Supplier number: 5334-50-M10-20EAN: 4045525279933
Quantity:
1 PiecePackable
Item available in 34 variants:
Price and stock visible after login
Description
The original ELESA design with 5 recess grips is typical for star knobs with threaded stud GN 5334. This form gives these grips an appealing look and additionally allows a high torque to be achieved. Original ELESA design, now produced in metal in agreement with ELESA S.p.A.
Attributes
Handle diameter d1
50
Length Length l
20
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 10
Weight
0.091 kg
d4
18
h1
30
h1 ≈
30
h2
16.5
h2 ≈
16.5
