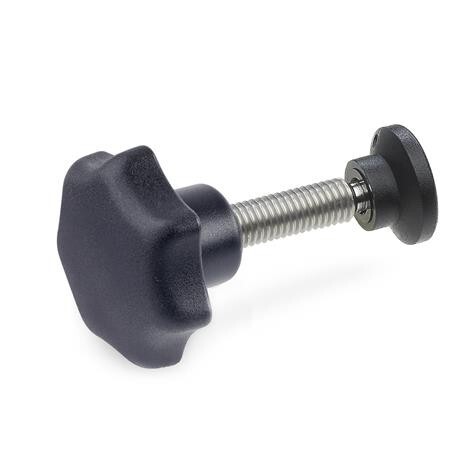

Star knob screw
GN 6336.12-50-M10-55-40 Stainless steel grub screwPA - plastic
Item-no.: 1209686Supplier number: 6336.12-50-M10-55-40EAN: 4045525697430
Quantity:
1 PiecePackable
Item available in 51 variants:
Price and stock visible after login
Description
Star knobs GN 6336.12 have a ball pin whose diameter is smaller than the core diameter of the thread. The movable thrust pad is easily clipped on and taken off. The thrust pads are supplied unmounted.
Attributes
Handle diameter d1
50
L2
7.3
Length l1
55
Material
PA - plastic
Pressure piece diameter d3
40
RoHS
Ja
Screw thread d2
M 10
Weight
0.069 kg
d4
22
d5
7.8
h1
32
h2
17
l3
7
l4
13
