Ganter

Star knob screw

GN 6336.4-SG-32-M6-16 Cast iron GG
SG - Cast iron
Item-no.: 1209706Supplier number: 6336.4-SG-32-M6-16EAN: 4045525339118
PU (Packaging): 20 PieceQuantity: ​​ 1 PiecePackable​
Item available in 26 variants:
Short-term Sourcing
Description
Star Knobs, Cast Iron, Threaded Stud Steel
Attributes

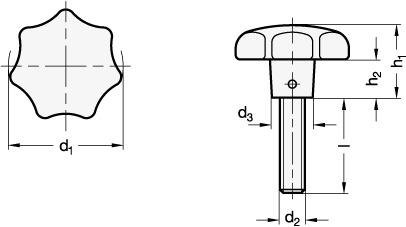

Handle diameter d1
32
Length l (material ST)
16
Material
SG - Cast iron
RoHS
Ja
Screw thread d2
M 6
Weight
0.053 kg
d3
12
h1
20
h2
9
