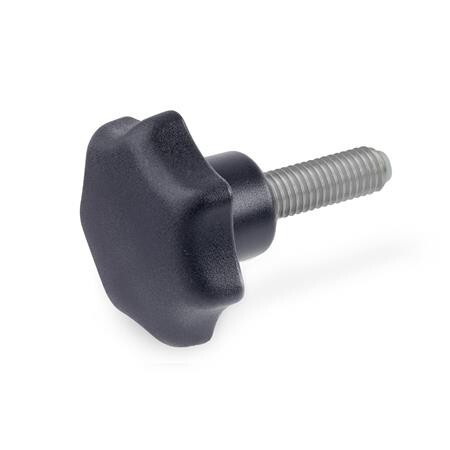

Star knob screw with plastic pin
GN 6336.10-25-M5-10-KUPA - Kunststoff
Item-no.: 1209617Supplier number: 6336.10-25-M5-10-KUcustoms tariff number: 73181595EAN: 4045525624252
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Star knobs GN 6336.10 with brass or plastic thrust pad are used when indentations or damage is to be avoided.

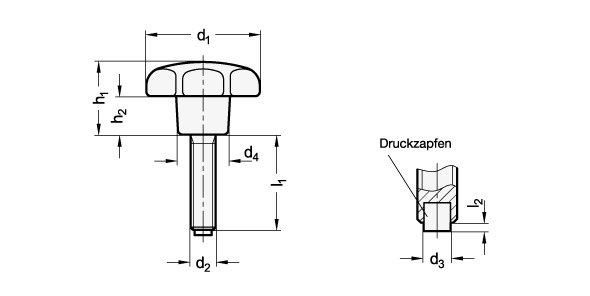

Attributes
Dowel pin material
KU - plastic, polyacetal (POM)
Handle diameter d1
25
KU spigot
1
Length l1
10
Material
PA - plastic, polyamide
RoHS
Ja
Screw thread d2
M 5
Weight
0.007 kg
d3 MS trunnion
3
d3 MS-Zapfen
3
d4
12
h1
16
h2
8
l2 MS spigot
0.5
