Stiftschraube für T-Nutenstein
DIN 6379-M6-50 Vergütungsstahl brüniert 10.9VS - heat treatable steel
Item-no.: 1210306Supplier number: DIN 6379-M6-50EAN: 4045525347083
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 29 variants:
Price and stock visible after login
Description

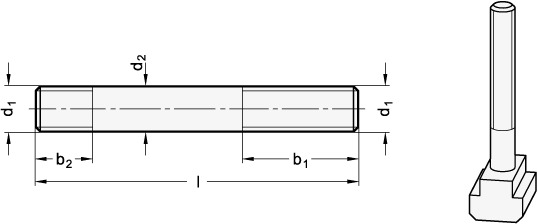

Studs DIN 6379 are primarily used with T-nuts DIN 508. Complete clamping screws can be created by combining them with hexagon nuts DIN 6330 and washers DIN 6340. The official DIN standard sheet also specifies a version with longer thread b2 as well as thread M30 and M36, however, size M14 is not included.
Attributes
Length l
50
Length l - thread length b1l - b1
50 - 30
Material
VS - heat treatable steel
RoHS
Ja
Weight
0.011 kg
b2
9
d1
M 6
d2
5.3
