Riegler

Stopfen Typ DP

DN 20 Kamlok, Edelstahl
Item-no.: 1732856Supplier number: 1119.34-EScustoms tariff number: 73071990EAN: 4047322404969

Quantity: ​​ 1 PiecePackable

Item available in 8 variants:
Short-term Sourcing

Description
Kamlok cap plug, DP type, Stainless steel 1.4401, Size 3/4, Plug Ø 32 mm, Operating pressure max. 16 bar, Temp. -20 °C to 95 °C. High-quality, robust, universal coupling system with a safety clamp for quick and easy connection of two hoses or for joining one hose to a machine connection. A male part and a female part are joined together by shifting the handles. There is no need to turn the hose! Kamlok stainless steel couplings are designed for use with corrosive media in the chemical and petrochemical industries, steelmaking, shipbuilding, agriculture, etc.
Attributes

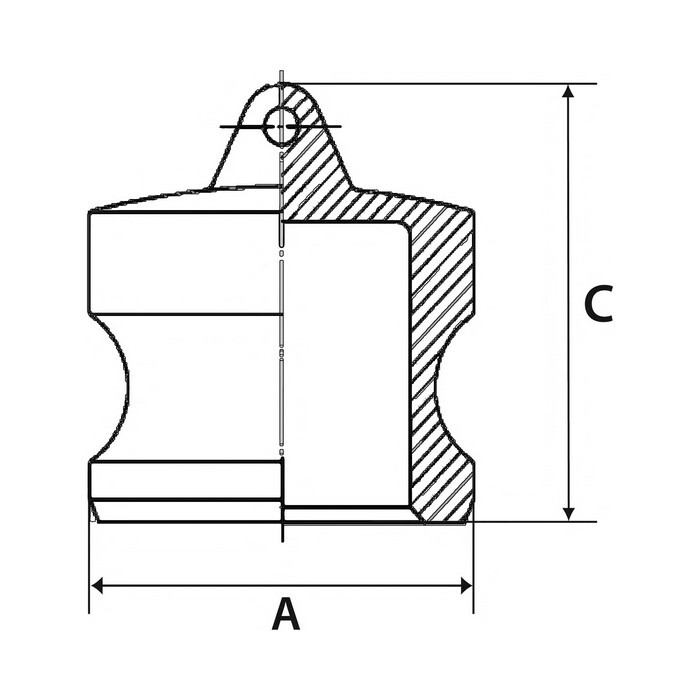

A
32,1 mm
BG
3/4
Max. operating pressure
16 bar
Plug-Ø
32 mm
Sealing material
NBR, oil and petrol resistant
Temperature range max.
95 °C
Temperature range min.
-20 °C
c
35,0 mm
