Straight screw-in spigot, conical
GE08LLRKEG CF, complete Galvanised steel, house brandItem-no.: 1278819EAN: 4047322167192
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Straight screw-in fitting, R 1/8 o., Pipe exterior Ø 8 mm, PN bar 100, AF1 14, AF2 12, galvanised steel. Male connector, conical male thread acc. to ISO 7-1, very light type

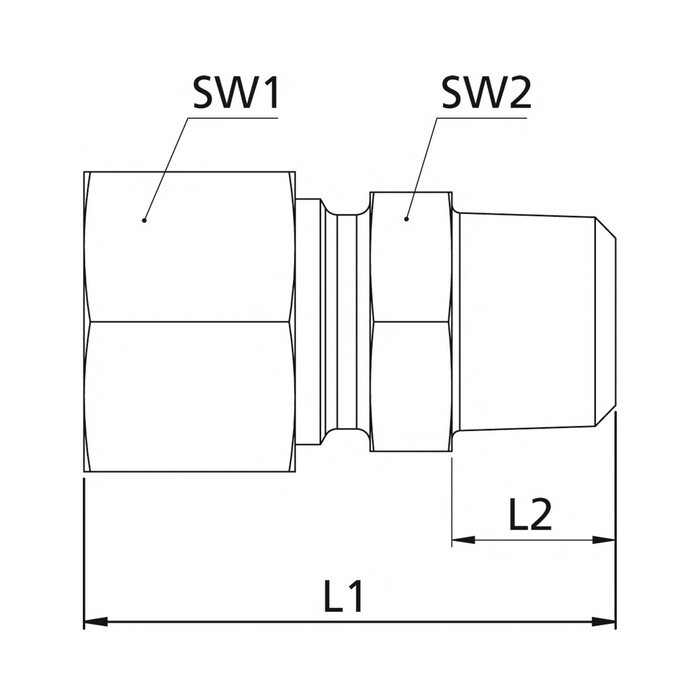

Attributes
L1
28,0 mm
L2
8,0 mm
Material
Galvanised steel (DIN 2353)
PN
100 bar
Pipe outer Ø
8 mm
Riegler article number
112124
SW 1
14 mm
SW 2
12 mm
Screw thread
R 1/8
