Step drill STB HSS 06-37/10 HC-FEP
6-37 mm, shank Ø 10 PferdItem-no.: 1416637Supplier number: 25201045EAN: 4007220166086
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description

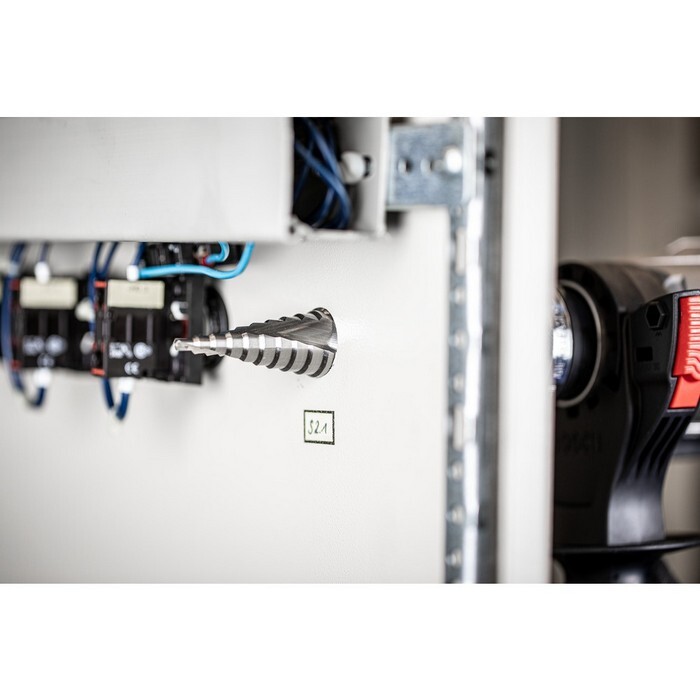

HSS step drills for drilling and deburring thin sheets, pipes and profiles made from various materials. To ensure reliable torque transmission, all step drills have a three-surface shaft. HSS step drills with premium HICOAT coating HC-FEP are wear resistant and versatile as they can be used to process steel, stainless steel (INOX), non-ferrous metals, thermoplastics and duroplastics. Step drills with HICOAT coating HC-FEP provide good high-temperature hardness and resistance to oxidation. They can therefore also be used on hard materials without the addition of coolants.
Attributes
Drilling area, from
6 mm
Drilling area, to
37 mm
Drilling stages
6,0/9,0/12,5/15,2/18,6/20,4/22,5/26,0/28,3/30,5/34,0/37,0
Length, total
100 mm
Number, drilling stages
12 Piece
RPM from, stainless and acid-resistant steels
90 RPM
RPM from, steels over 700 N/mm²
90 RPM
RPM from, steels up to 700 N/mm²
180 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CFRP)
90 RPM
RPM of, soft non-ferrous metals
180 RPM
RPM up to, soft non-ferrous metals
2400 RPM
RPM up to, stainless and acid-resistant steels
1060 RPM
RPM up to, steels over 700 N/mm²
1060 RPM
RPM up to, steels up to 700 N/mm²
1600 RPM
RPM up to, thermoplastics, fibreserv. plastics (GFK/CFK)
1060 RPM
Version
HC-FEP
Ø Shaft metric
10 mm
