System handle

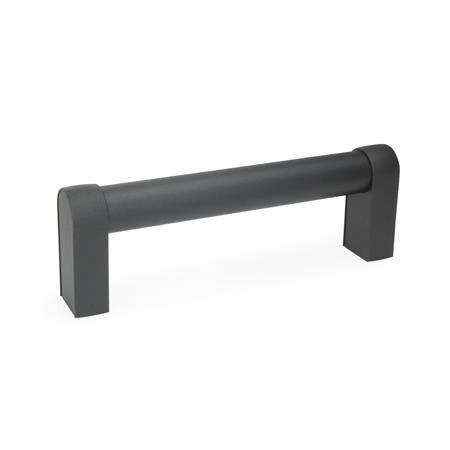

GN 669-28-200-A-SW Aluminium SW RAL 9005, rear mountingAL - Aluminium
Item-no.: 1211121Supplier number: 669-28-200-A-SWEAN: 4045525350250
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
System handles GN 669 offer the the advantage of high stability due to the connection of handle tube / handle leg. The screws of type B (mounting from operator´s side) are shrouded.
Attributes
Form
A - Mounting from the rear (threaded blind hole)
Handle diameter d1
28
L2
20
Length l1
200
Material
AL - Aluminium
RoHS
Ja
Screw thread
M 8
Surface
SW - black, RAL 9005, textured matt
Weight
0.195 kg
b1
32
b2
20
h
60
l3 Max.
11
tmin.
15
