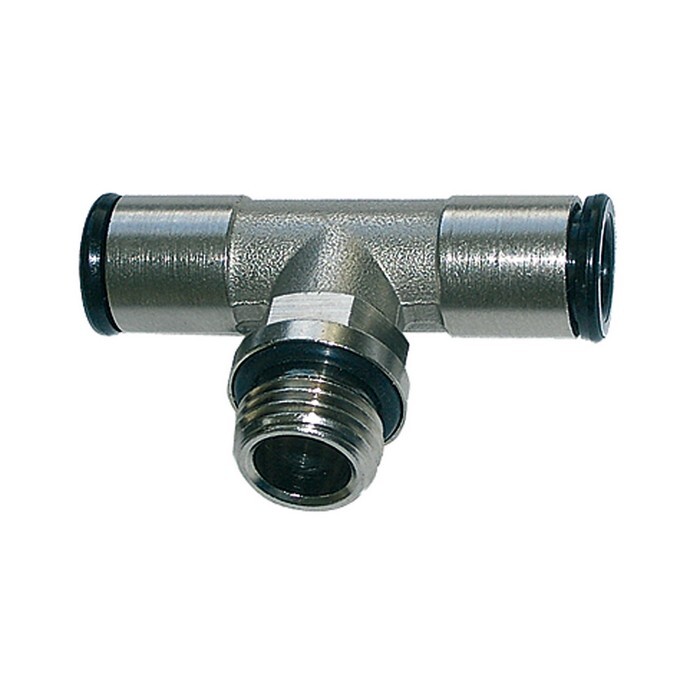

T-Einschraubverschraubung
AG 1/4" zyl., 2x SD8, O-Ring value line, Messing vernickelt, drehbarItem-no.: 1247500Supplier number: 55.014-8-Ecustoms tariff number: 74122000EAN: 4047322183871
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
T-screw-in fitting »value line«, rotating, G 1/4 o., for hose exterior Ø 8, Working pressure -0.98 to 16 bar, nickel-plated brass . Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass. Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Attributes
Collet
Stainless steel AISI 316
For outer hose Ø
8 mm

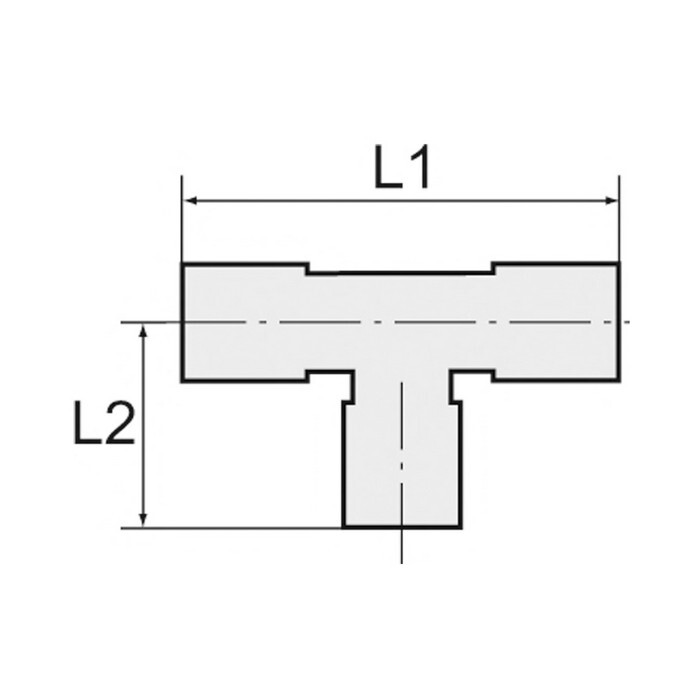

L1
46,0 mm
L2
22,5 mm
Loosening ring
Hostaform
Material
Nickel-plated brass
Medium
Compressed air
O-ring
NBR, silicone-free
Operating pressure
max. 16 bar (at +20 °C)
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
value line
Recommended hose
PA, PU
Riegler article number
116215
SW
13 mm
Screw thread
G 1/4
Sealing material
NBR, silicone-free
Series
value line
Working pressure max.
16 bar
Working pressure min.
-0,98 bar
